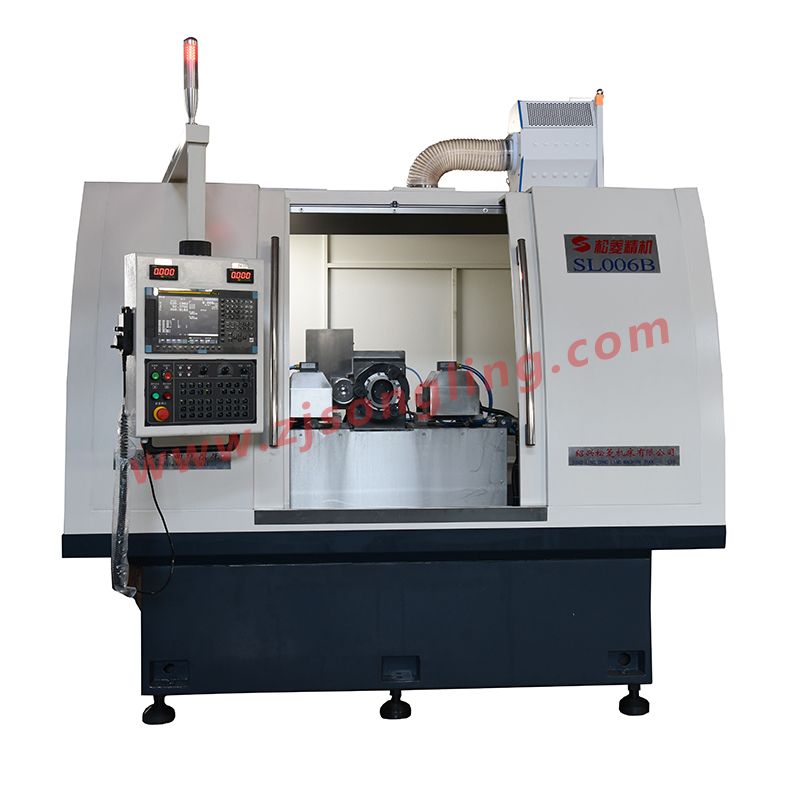

Feature：

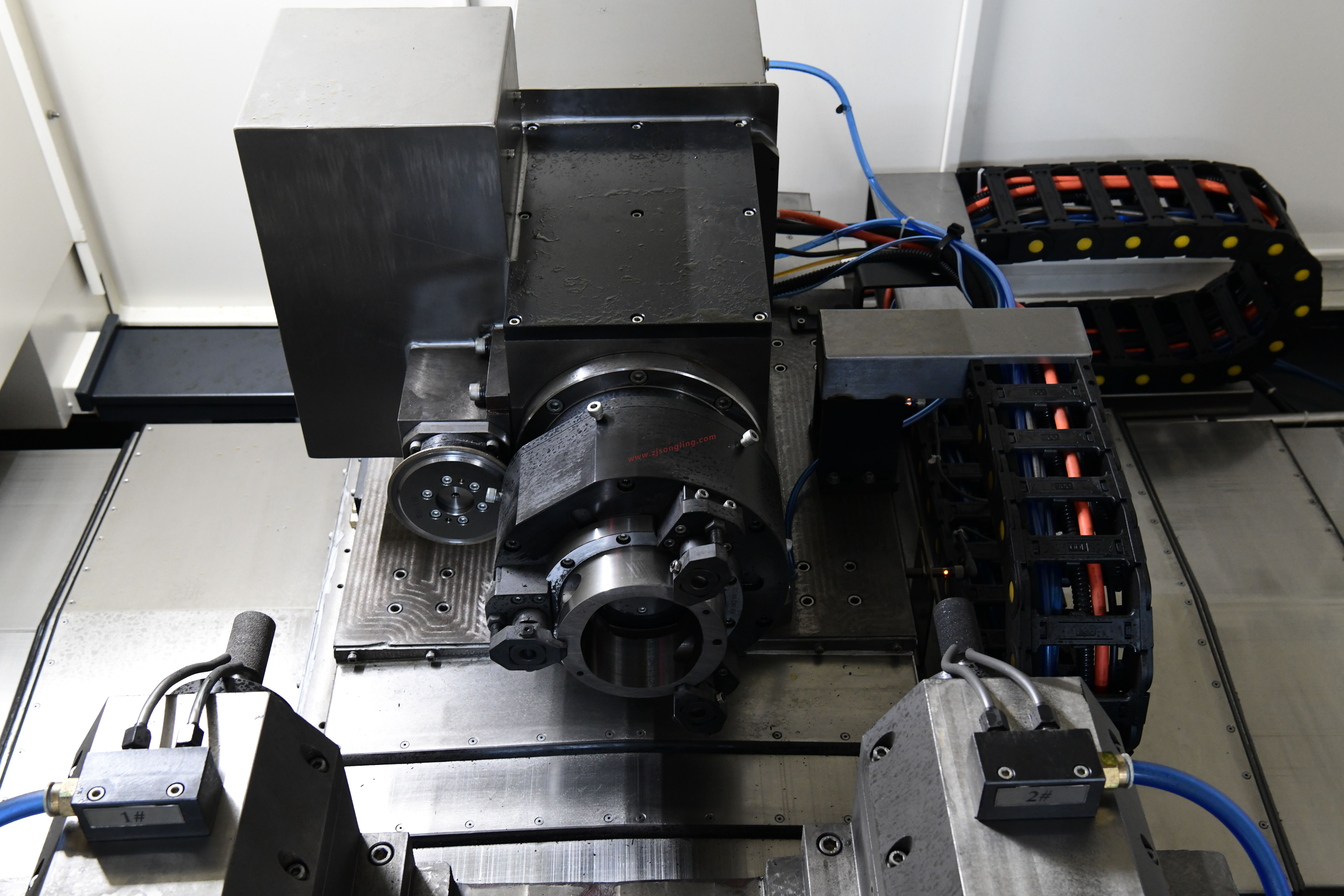

The workpiece performs an action of reciprocation on the foundation of two fixed spindles, which greatly
improve the grinding rigidity of the spindle.Depending upon the different material of components, the machine
comes with a number of optional wheels with various kinds of material and diverse grinding processes, which
widely increases efficiency and precision of components during processing. C-axis is able to be equipped with
close loop control system to further reduce the size error of profile during grinding. The internal profile and
external sided profile can be grinded at the same time in one clamping. The spindle is configured in various
rotating speed from 24000 rpm to 48000 rpm.
Application：
It is mainly suitable for profile processing of cam ring such as vane pump, power steering pump,
automobile air-conditioning compressor, automobile fuel pump, etc.
Accuracy：
Profile ≤0.05mm
Verticality of internal bus bar and reference plane ≤0.005mm
Surface roughness Ra≤0.2μm
Technical Data：
Workpiece bore diameter(mm) | Φ30～Φ125 |
Grinding width max.(mm) | 60 |
Workpiece OD Max.(mm) | Φ145 |
X-axis travel max.(mm) | 1050 |
Z-axis travel max.(mm) | 280 |
C-axis speed max.(rpm) | 200 |
X-axis feed speed max.(m/min) | 12 |
Work head speed max.(rpm) | 60000 |
Machine dimensions(W×L×H) (mm) | 2700×1950×2000 |
Gross weight of machine(approx.kg) | 6600 |
