SL006C / SL006D /SL006E Cam Ring Profile Grinding Machine
Feature：
Equipped with two grinding spindles. Depending upon the various material of components and different technologies for both rough and fine grinding, the machine comes with a number of optional wheels with diverse material, linear speed, feed speed and grinding processes, which greatly enhances efficiency and precision of components during processing. The X-axis can be driven by an optional linear motor. The C-axis is driven directly by servo motor, which reduces transmission error and greatly improves the profile. The X-axis can be equipped with linear encoder. The spindle is configured in various rotating speed from 24000 rpm to 48000 rpm based on the particular demand.
Application:
It is mainly suitable for the processing of cam ring profile of vane pump, power steering pump, automobile air-conditioning compressor, automobile fuel pump, etc.
Accuracy：
Data | SL006C | SL006D | SL006E |
Profile(spindles for rough and fine grinding both made in China) | ≤0.035mm | ≤0.035mm | ≤0.032mm |
Profile(spindle for fine grinding made in Germany) | ≤0.025mm | ≤0.025mm | ≤0.022mm |
Perpendicularity of the bore to the positioning reference plane | ≤0.005mm | ≤0.005mm | ≤0.005mm |
Surface roughness | Ra≤0.2um | Ra≤0.2um | Ra≤0.2um |
Technical Data：
Data | SL006C | SL006D | SL006E |
Workpiece bore diameter | φ40～φ125mm | φ40～φ125mm | φ40～φ125mm |
Grinding width | ≤80mm | ≤80mm | ≤80mm |
Workpiece OD | ≤φ150mm | ≤φ150mm | ≤φ150mm |
X-axis travel max. | 500mm | 500mm | 540mm |
X-axis drive mode | Servo motor+ball screw | Servo motor+ ball screw | Linear motor |
Linear encoder | Optional | Optional | Standard |
Z-axis travel max. | 240mm | 240mm | 240mm |
C-axis speed max. | 200rpm | 200rpm | 200rpm |
C-axis driving mode | FANUC DD torque motor | SIEMENS DD torque motor | FANUC DD torque motor |
X-axis feed speed max. | 12m/min | 12m/min | 12m/min |
Work head speed max. | 48000rpm | 48000rpm | 48000rpm |

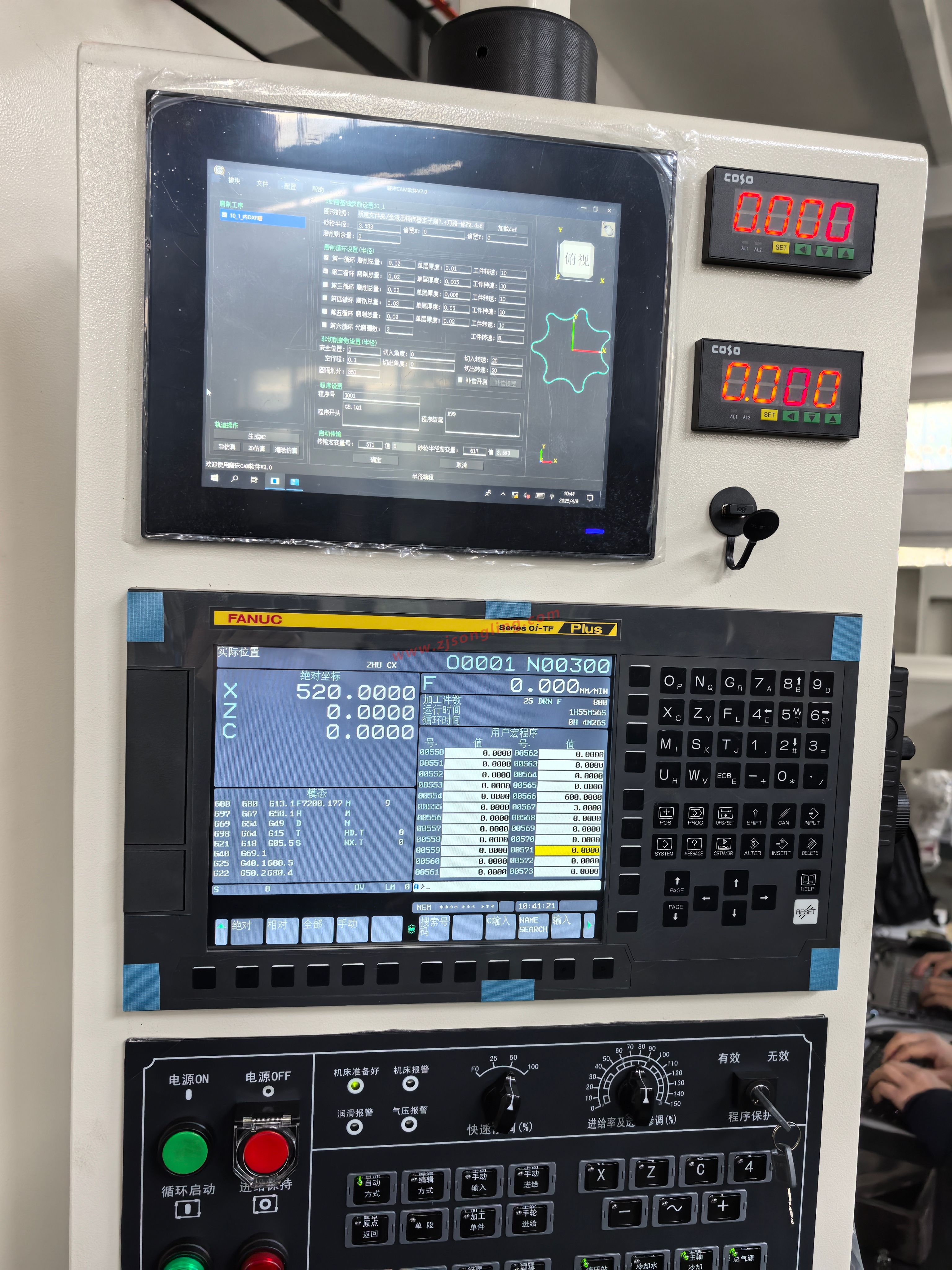

Control system | Fanuc | Siemens | Fanuc |
Machine dimensions(W L H) | 2610X1985X2600mm | 2610X1985X2600mm | 2610X1985X2600mm |
Gross weight of machine(approx.kg) | 5500kg | 5500kg | 5500kg |
