Feature:

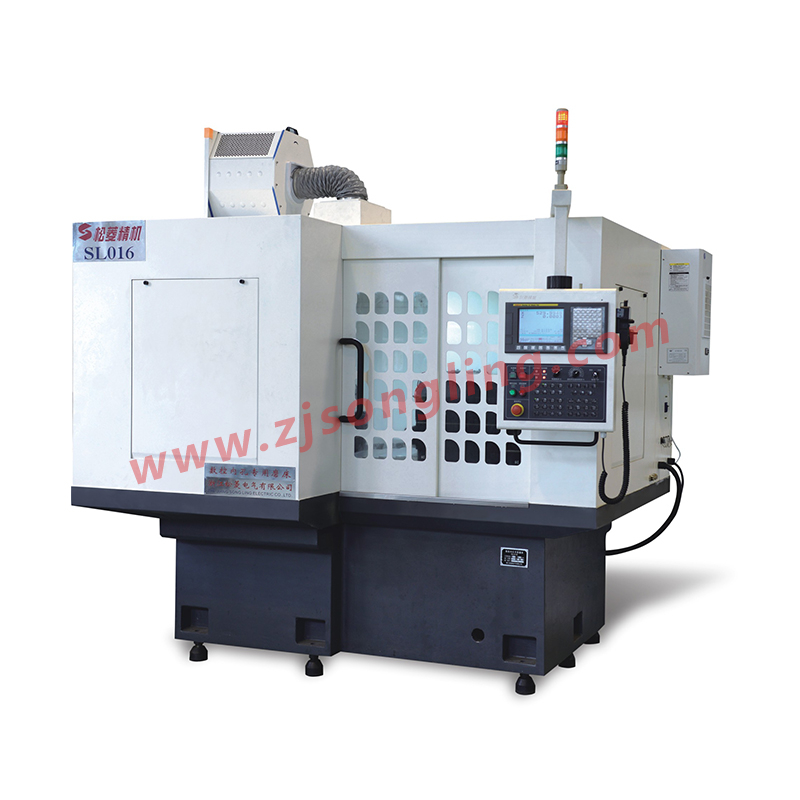

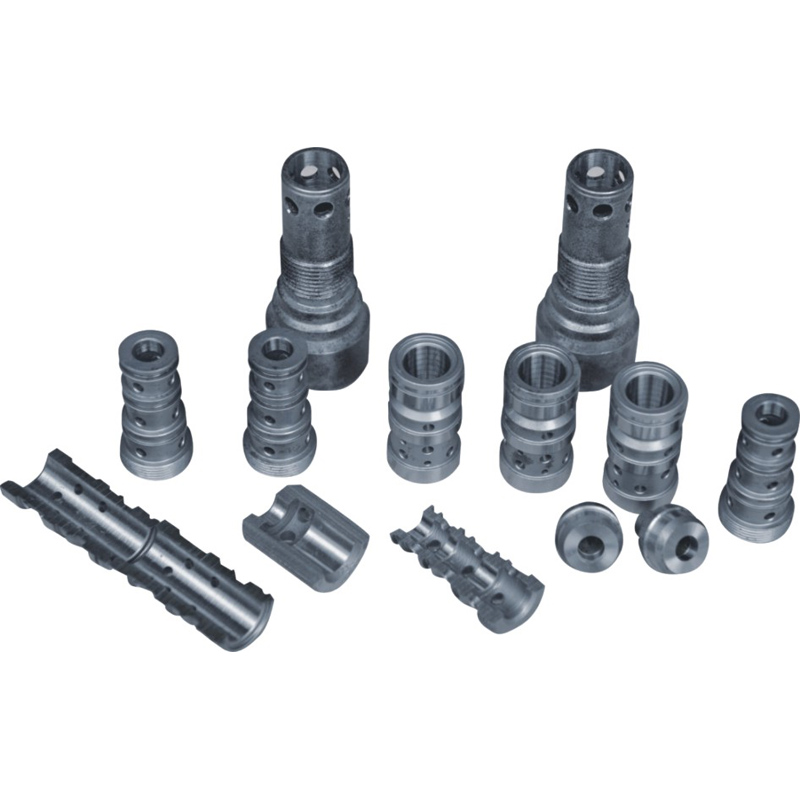

The machine is equipped with one or two spindles in the various kinds of configuration. Depending upon the various material of components and grinding technologies, the machine comes with a number of optional wheels with different material, linear speed, feed speed and grinding processes, which greatly enhances efficiency and precision of components during processing. The internal bore can be grinded for range from diameter 4mm to 50mm according to the different configurations and compositions. Not only single step through hole and bore but also multi-step hole and bore enable to be grinded at the same time in one clamping. The spindle rotating speed range could reach from 36000 rpm to 120000 rpm based on the particular configuration.
Accuracy:
Size tolerance ≤0.008mm
Concentricity of multi-step bore ≤0.002mm
Roundness of internal bore ≤0.002mm
Technical Data:
Grinding length max.(mm) | 70 |
Fixture OD max.(mm) | Φ130 |
Grinding ID(mm) | Φ4~Φ100 |
X-axis travel max.(mm) | 380 |
Z-axis travel max.(mm) | 160 |
Spindle speed max.(rpm) | 1000 |
X-axis feed speed max.(m/min) | 12 |
Work head speed max.(rpm) (rpm) | 120000 |
Machine dimensions(W×L×H) (mm) | 2610x1985x2600 |
Gross weight of machine(approx.kg) | 5500 |
Feature:
The machine is equipped with one or two spindles in the various kinds of configuration. Depending upon the various material of components and grinding technologies, the machine comes with a number of optional wheels with different material, linear speed, feed speed and grinding processes, which greatly enhances efficiency and precision of components during processing. The internal bore can be grinded for range from diameter 4mm to 50mm according to the different configurations and compositions. Not only single step through hole and bore but also multi-step hole and bore enable to be grinded at the same time in one clamping. The spindle rotating speed range could reach from 36000 rpm to 120000 rpm based on the particular configuration.
Accuracy:
Size tolerance ≤0.008mm
Concentricity of multi-step bore ≤0.002mm
Roundness of internal bore ≤0.002mm
Technical Data:
Grinding length max.(mm) | 70 |
Fixture OD max.(mm) | Φ130 |
Grinding ID(mm) | Φ4~Φ100 |
X-axis travel max.(mm) | 380 |
Z-axis travel max.(mm) | 160 |
Spindle speed max.(rpm) | 1000 |
X-axis feed speed max.(m/min) | 12 |
Work head speed max.(rpm) (rpm) | 120000 |
Machine dimensions(W×L×H) (mm) | 2610x1985x2600 |
Gross weight of machine(approx.kg) | 5500 |
